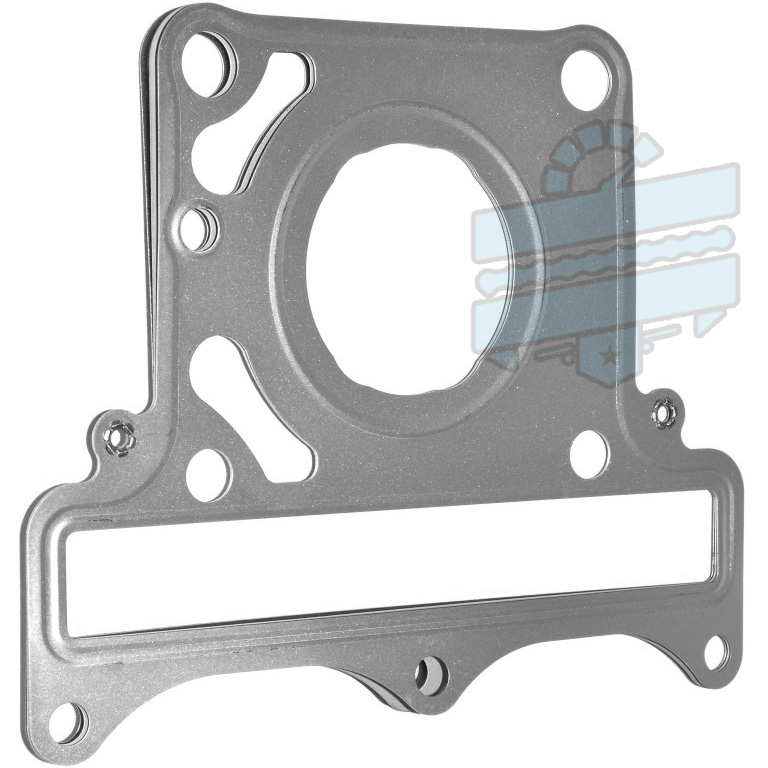

Cylinder Head Metal Engine Gasket – GT125R GT125 & GV125 Carby
Stop compression loss with a solid seal. This heavy-duty metal gasket is the only way to properly seal the firing chamber and oil ways, curing loss of power and leaks on everyday roads.
- Material // Steel build to handle the high heat and pressure inside the motor.
- Utility // Stops oil from weeping out and cures engine misfires caused by pressure leaks.
- Aftermarket Version // Sourced replacement since the original factory item is completely discontinued.
- Hardware // Includes 1x metal gasket for one head.Order two (2x) if doing both cylinders.
If you are stripping both heads on your 125cc V-Twin, you will need to order two.
Description
When your 125cc bike starts losing its pull or sweating oil right where the head meets the main block, the head gasket is usually done. Unlike cheap paper parts or liquid sealant which can squeeze out and block your oil lines, this metal gasket is built to handle the high pressure and hot running temps of the air-cooled V-Twin motor. It is a necessary replacement if you are cleaning carbon off the pistons or doing a top-end refresh to keep your bike running right on everyday roads.
💎 CYLINDER BASE BLOCK SPECIFICATIONS
| High Pressure SealKeeps the firing chamber airtight to protect your engine’s power. | Discontinued Option MatchAftermarket replacement made to match old part record 11141HG5110. |
| Thermal ShieldingResists the deep heat soak common on the rear cylinder. | Exact Bore ShapeStamped out to sit perfectly flat on air-cooled 125cc twin barrels. |
📜 Confirmed Fitment Guide
Carburettor 125cc V-Twin Group: Sits between the valves block and the piston jug on the specific air-cooled models below.
- GT Comet Sport & Naked: GT125, GT125R, and GT125RC models built from 2003 to 2022.
- GV Aquila Cruiser: GV125C models with twin carburettors built from 1999 to 2018.
❌ WILL NOT FIT THESE MOTORCYCLES:
- Modern Liquid-Cooled & Large Engines: This will not fit the newer GV125S Aquila Bobber (different water jacket block), GV300S, or any 250cc engine models like the GT250 or GV250.
🔧 Install Tips
- Surface Prep: Use a plastic scraper to clean off all old gasket bits and black carbon crust. The metal faces must be dry and completely clean before putting the new seal on.
- Install Dry: Do not use RTV glue or copper spray on this gasket. It is designed to be installed totally dry to mimic factory standard seals.
- Torque Pattern: Always use a proper torque wrench and follow the cross pattern in your workshop book. This stops the head from twisting or warping when you tighten the nuts.
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 20 × 20 × 2 cm |
