Brake Stop Light & Clutch Lever Switch – Hyosung GV125 GV250

Estimated delivery dates: Aug 27, 2026 - Aug 28, 2026

£12.99

💎 BRAKE & CLUTCH SWITCH // FIXES START AND STOP INTERLOCKS

One replacement switch to fix two critical faults. This part restores your front brake light activation or fixes non-starting issues caused by a faulty handlebar clutch safety connection. A direct-fit aftermarket version engineered to original factory dimensions for quick restoration.

Function // Multi-purpose design used for either for brakes or clutch lever.
Installation // Direct plug-in setup that matches your original wiring connector plugs.
Reliability // Test-fitted on workshop donor bikes to verify crisp physical button response.
What’s Included // Supplied individually as 1x Lever Switch (order two if renewing both sides).

FITMENT NOTE: One some models, a degraded clutch interlock wire block will completely stop the starter motor from cranking over. Renewing this micro switch fixes that electrical block.

Secure Checkout via

Description

A small but vital component in your motorcycle’s electrical system. This aftermarket switch serves two purposes depending on where it is fitted: activating your front brake light or confirming the clutch is pulled in so your bike can start safely. When these fail, road safety and starting reliability are heavily compromised. This direct replacement version ensures full control box functionality is restored immediately for life on everyday roads.

💎 One Switch, Reliable Performance

Safety EssentialTriggers front brake lights the second you touch the lever blade.	OEM Reference MatchAccurate casting dimensions built to match factory part 57460H93B00.
Get Started SafelyRestores the electrical earth ground link needed to engage your starter.	Multi-Use SwitchVersatile design block fits right or left handlebar perch brackets.

📜 Model Fitment

Confirmed Matches: Fits classic Hyosung Aquila models listed below:

GV125 (Carburettor Models): Fits up to 2017. Used as front brake light switch, or as a clutch interlock switch on specific wiring configurations.
GV250 (Carburettor & EFi Models): Fits up to 2017. Works for front brake light switch AND / OR handlebar clutch lever safety perches.

❌ WILL NOT FIT:

This component will not fit larger GV650 cruiser frames because the integrated electrical lead cable length is too short to route down the taller bars.

💡 BRAKING MAINTENANCE SUGGESTION:
If you are currently replacing a faulty front brake switch point to fix a sticky tail bulb, consider checking your hydraulic fluid health at the same time. Flushing old fluid with fresh DOT 4 Brake Fluid balances line pressure and locks in maximum stopping confidence.

🔧 Install Tips

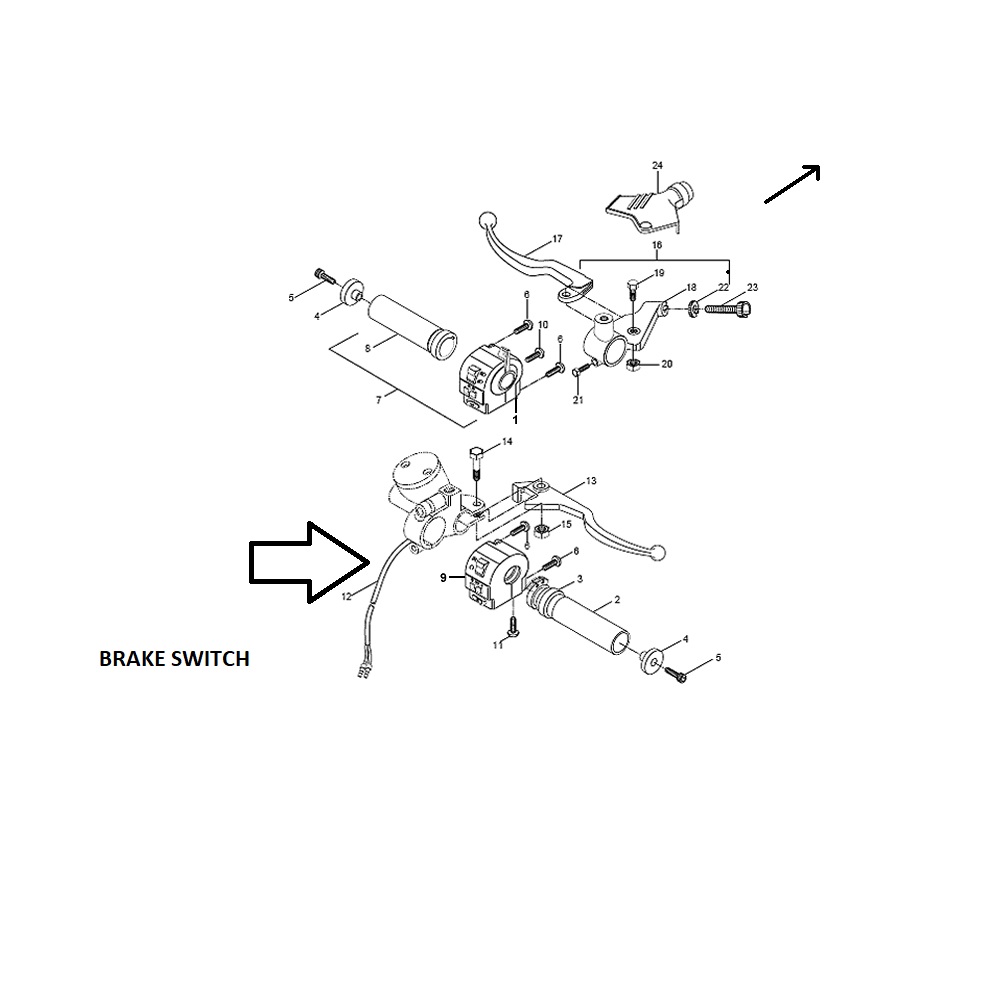

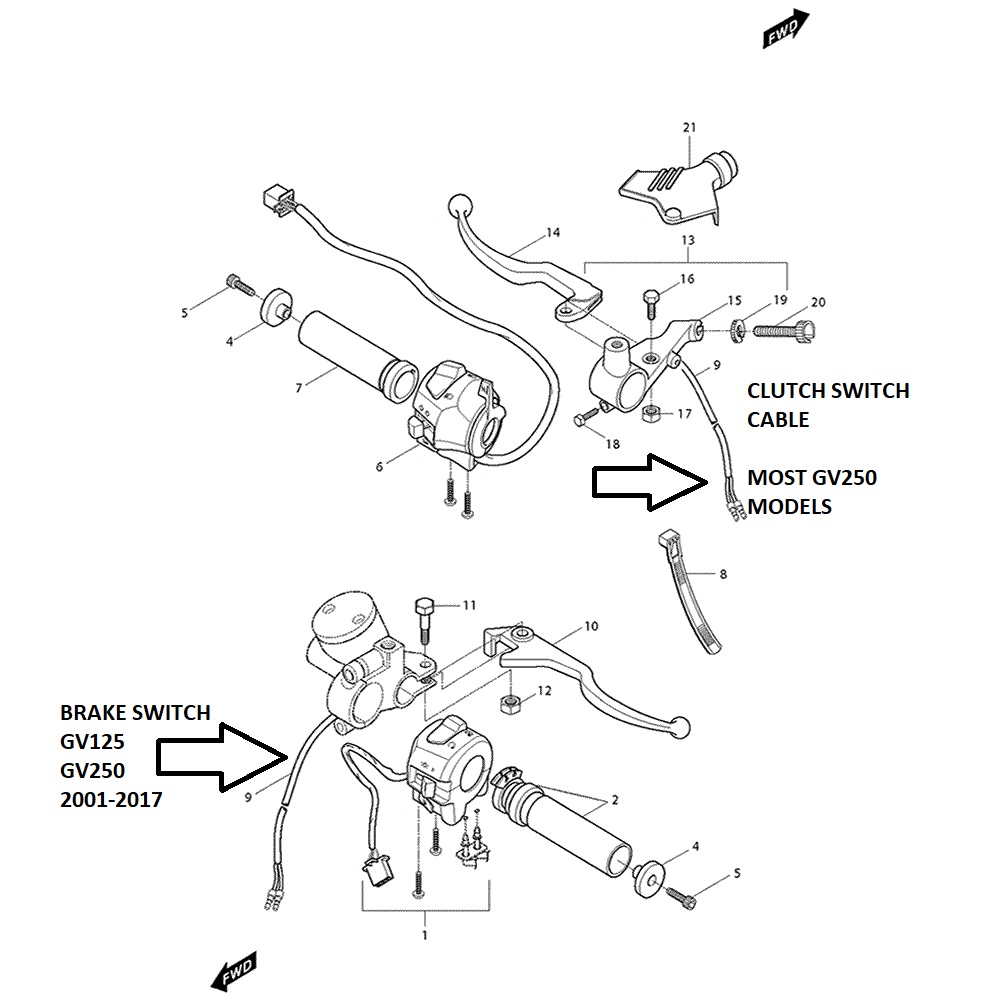

Identify the Mount: Locate the plastic switch housing clipped underneath either your front brake master cylinder or clutch lever lever bracket. It simply pops loose from its tab lock.
Easy Wiring Swap: Unhook the factory bullet or block connectors, seat the new casing securely into the guide slot, and link the wires back up. No complex splicing required.

📧 SPECIFICATION OR PINOUT QUESTIONS? For electrical help or community opinions, head to the forums.

SKU: 57460H93B00-GV Categories: ⚙️ GV125 CARBY, ⚙️ GV250 (EFi), ⚙️ GV250 CARBY, 🔧 Service & Maintenance Tags: aquila 250, carby, efi, gv125, gv250, plug & play kits, service-kits

Additional information

Weight	0.5 kg
Dimensions	20 × 20 × 2 cm
