Brake Pad Tension Spring Plate (W-Shape Anti-Rattle Clip) – Various Hyosung Models (2005-2017)

Description

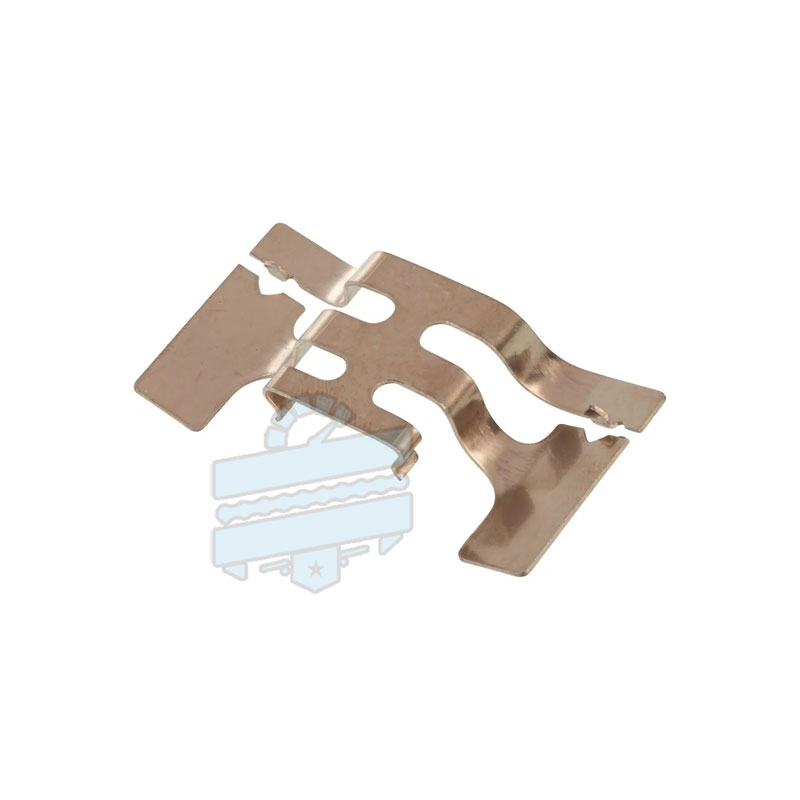

When you take your machine out on bumpy roads, your brake pads can wobble, shake, and clatter inside the housing. This small W-shaped caliper tension shim acts as a constant pressure plate, pushing down on the metal backing plates so they remain secure, silent, and ready to bite the disc instantly when you grab the lever. If your front end is emitting an annoying clicking or ticking noise over road ruts, your old spring plate is likely distorted, corroded away, or dropped out entirely by a previous owner during a quick pad change. Slipping a fresh clip into the slider channel stops the chatter immediately.

💎 Component Properties

📜 Confirmed Fitment Guide

🔧 Install Tips

• Clean the landing channels: Scrape away any packed road grime, hard dust crust, or white corrosion fur from the recessed metal ledges before setting the fresh clip down. If the seating zone isn’t smooth, the tension tab will sit cock-eyed and twist the backing plates.

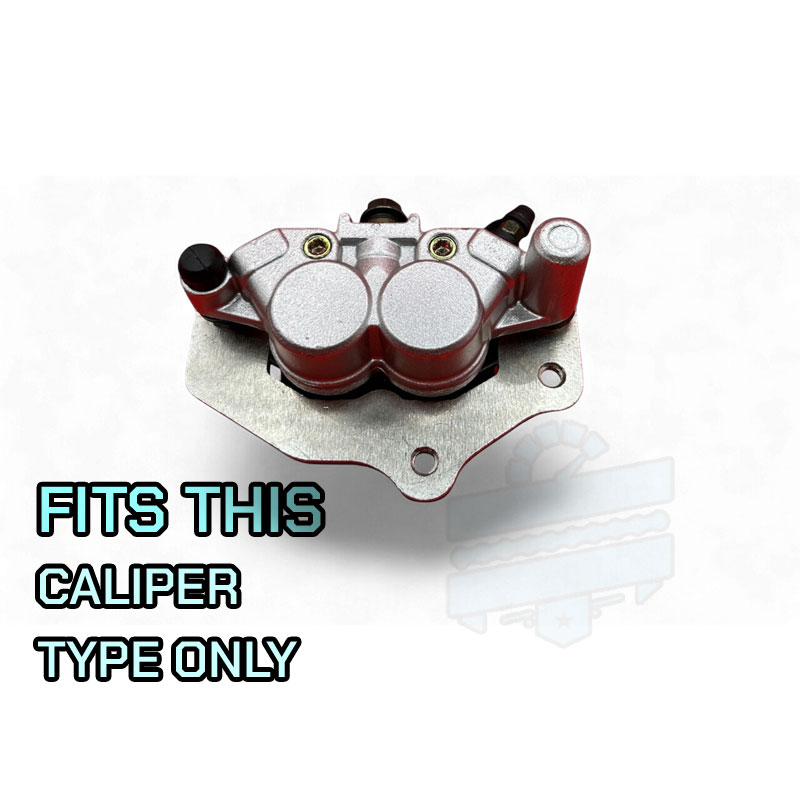

• Orientation check: Double-check the position of the metal ears against your old setup. The center bow must arch away from the piston faces to apply correct downward load without jamming. See the gallery photos for a clear visual example of it sitting inside the casting.
• Pin lubrication: Slide your holding rods through the backing eyelets manually to ensure everything moves freely against the spring load. Put a tiny smear of high-temp copper lubricant on the pin shaft, keeping it well clear of the frictional lining.
