Hyosung GV250DRA Specifications (2023+ Onwards)

Searching for the official Hyosung GV250DRA Specifications? This is the ultimate guide to the revived 6-speed, EFi sport cruiser. View verified technical data for the 2023+ Onwards models, explore the new features like inverted forks and LED lighting, and join the owner’s forum for technical support.

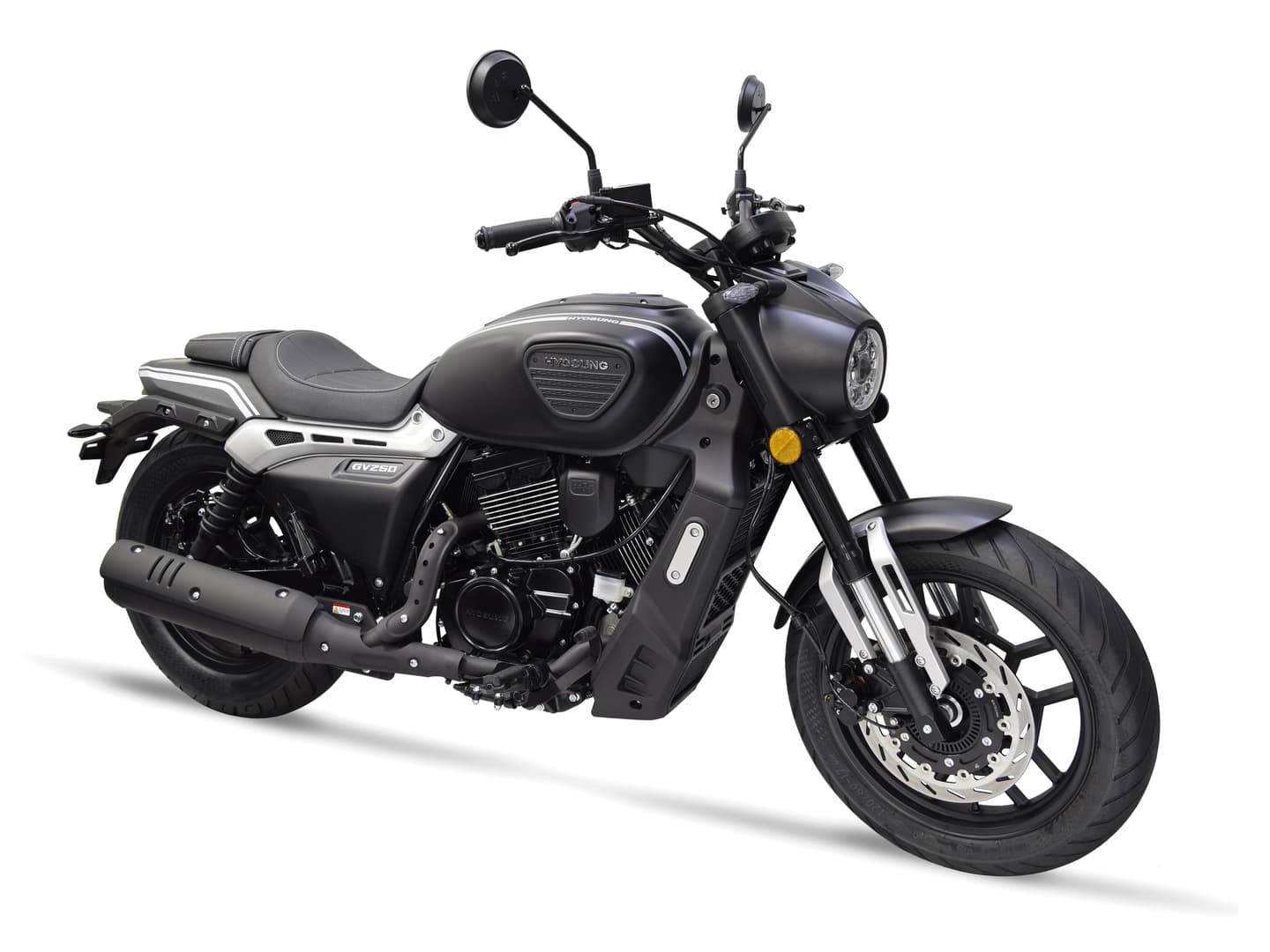

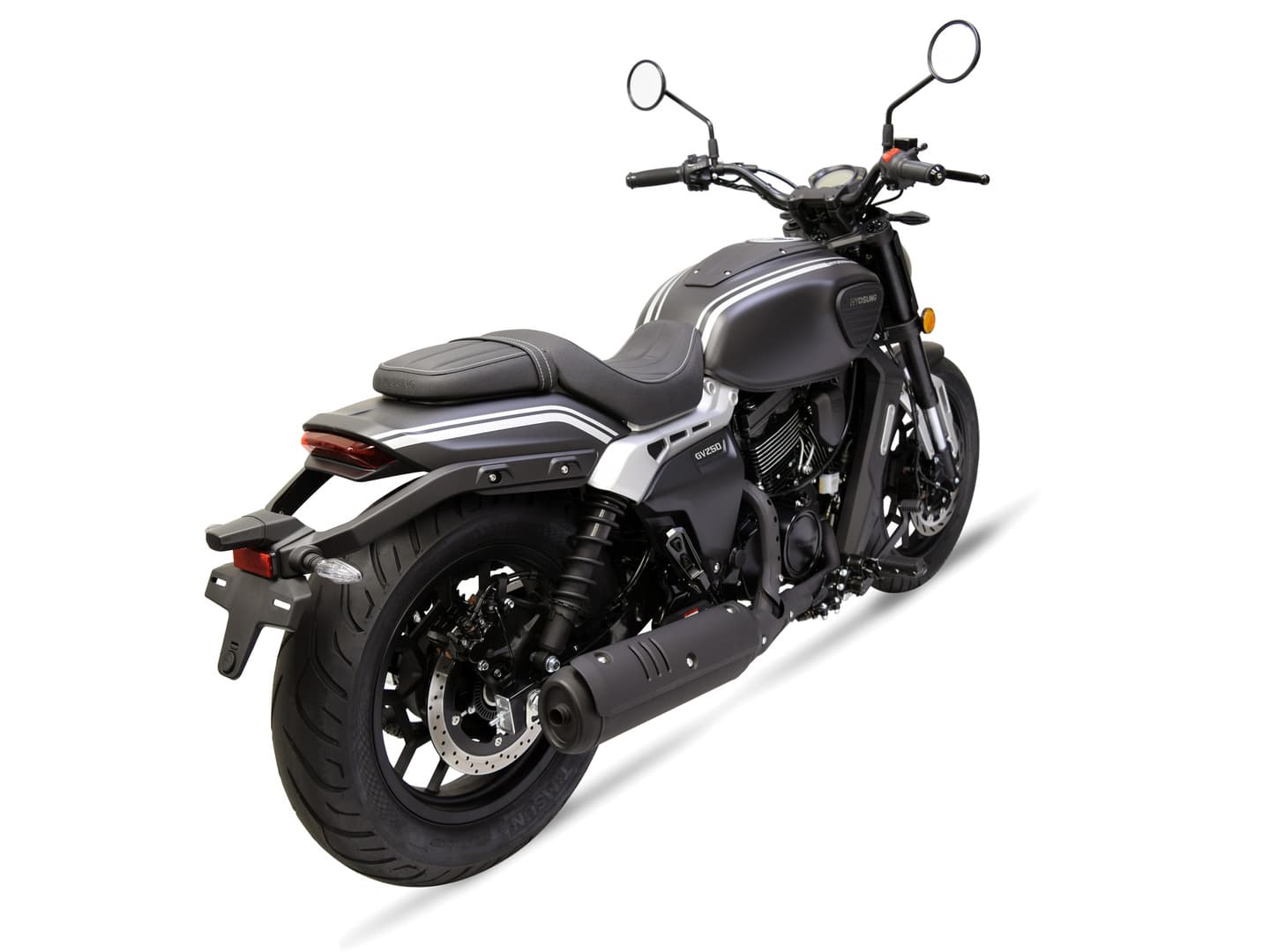

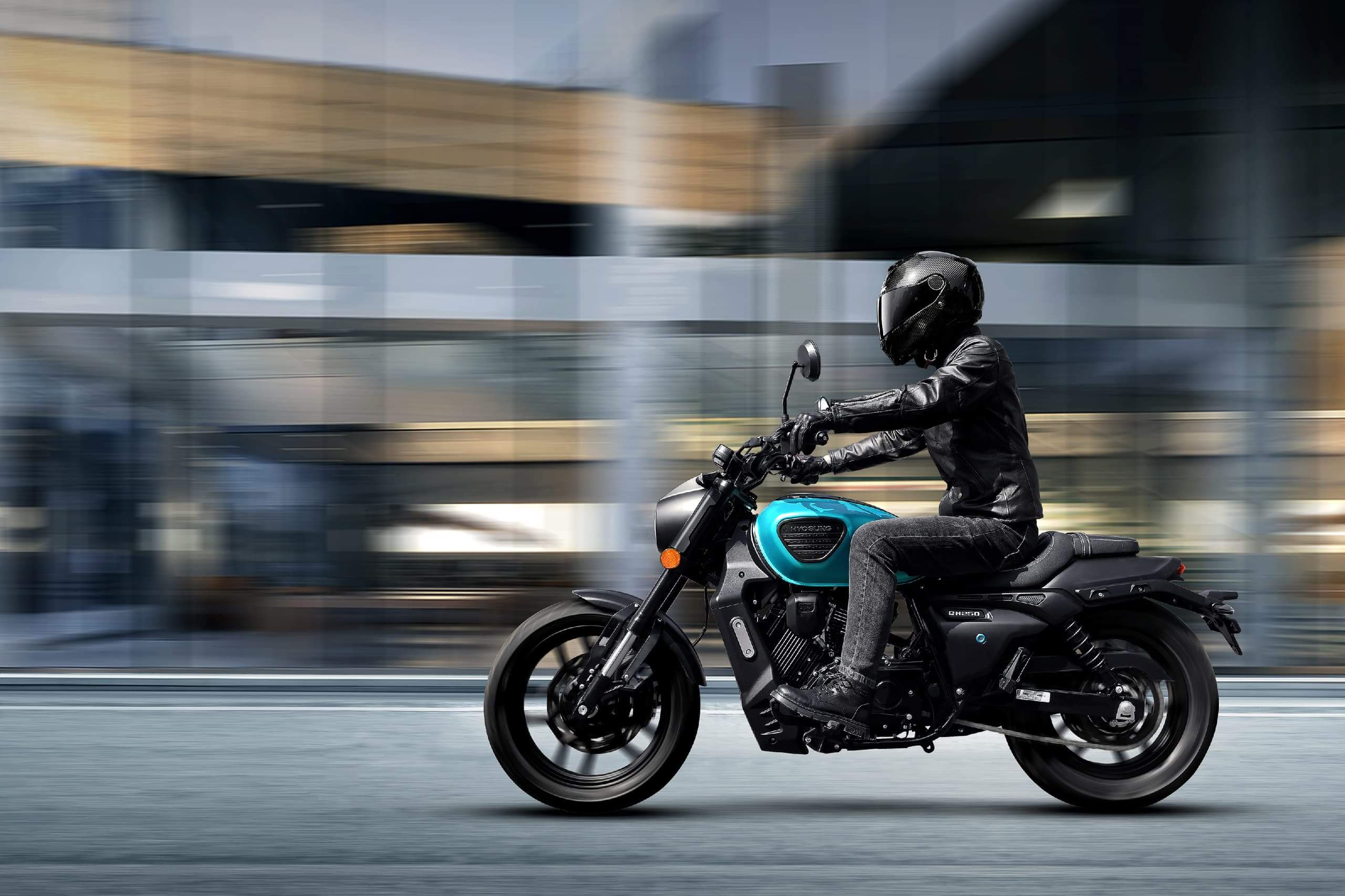

Hyosung GV250DRA (2023-Present) – The legend returns! This is not the legacy Aquila you remember; the DRA is a completely new machine developed by QINJIKR (the KR Motors joint venture). It is a “modern retro sports cruiser” designed for global Euro5 compliance. While it might not reach EU markets (replaced by the GV300S), it has a strong presence in Asia so far. It features a new updated legacy frame, 6-speed gearbox, USD forks, and Bosch ABS system—sharing zero backward compatibility with the pre-2017 GV250 models.

Hyosung GV250DRA Specifications (2023-2026)

⚡ Engine & Performance Specifications

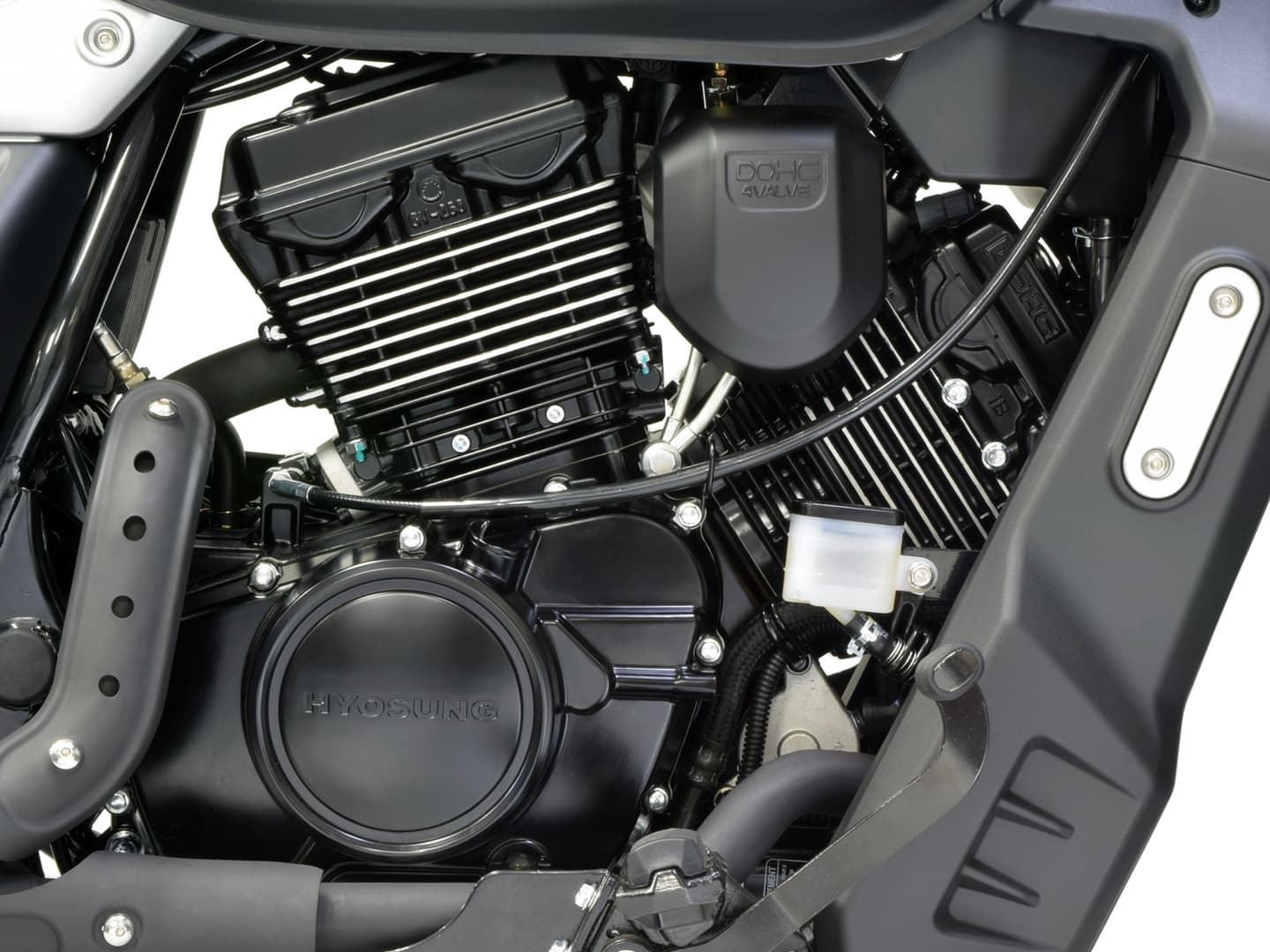

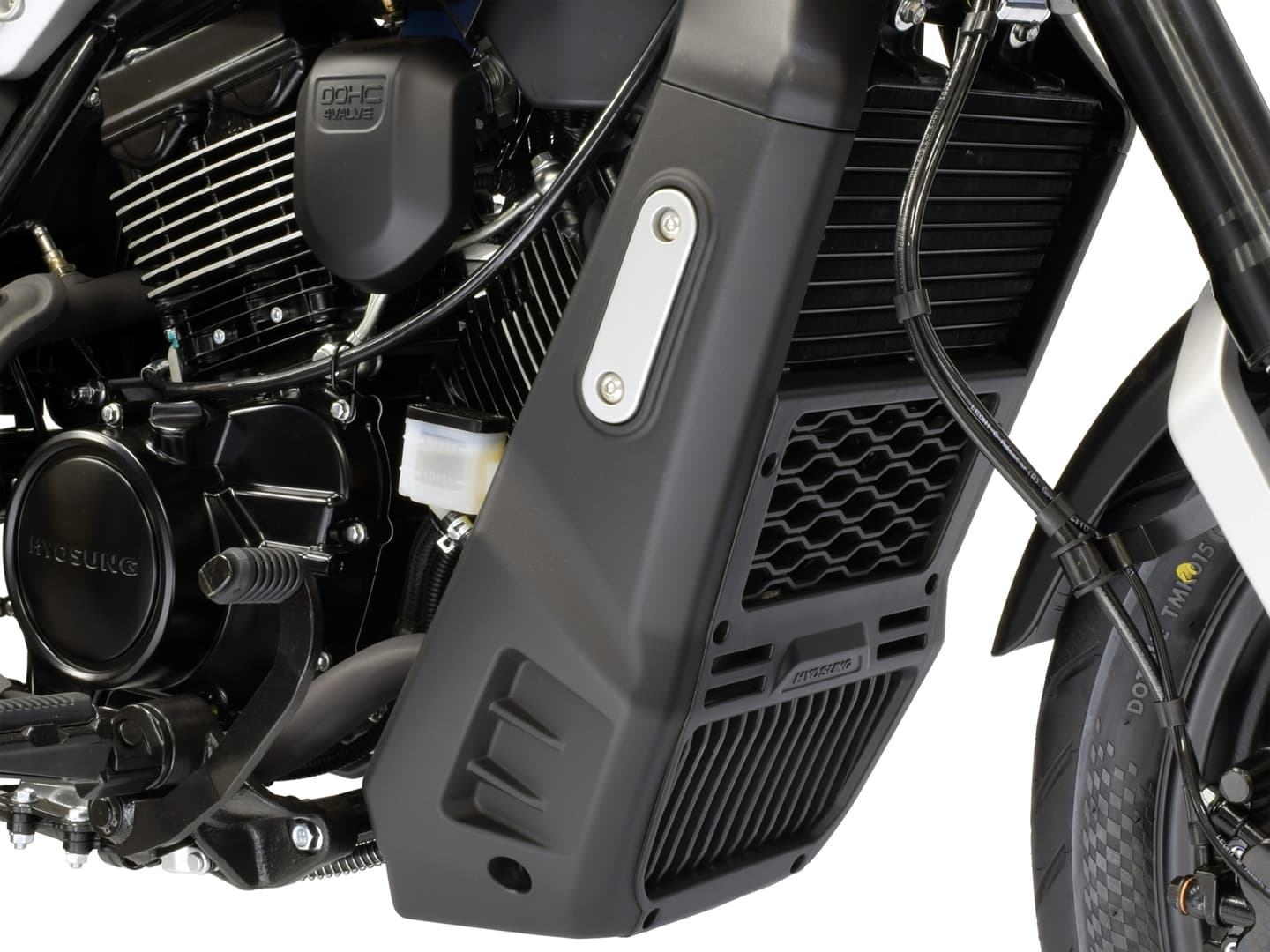

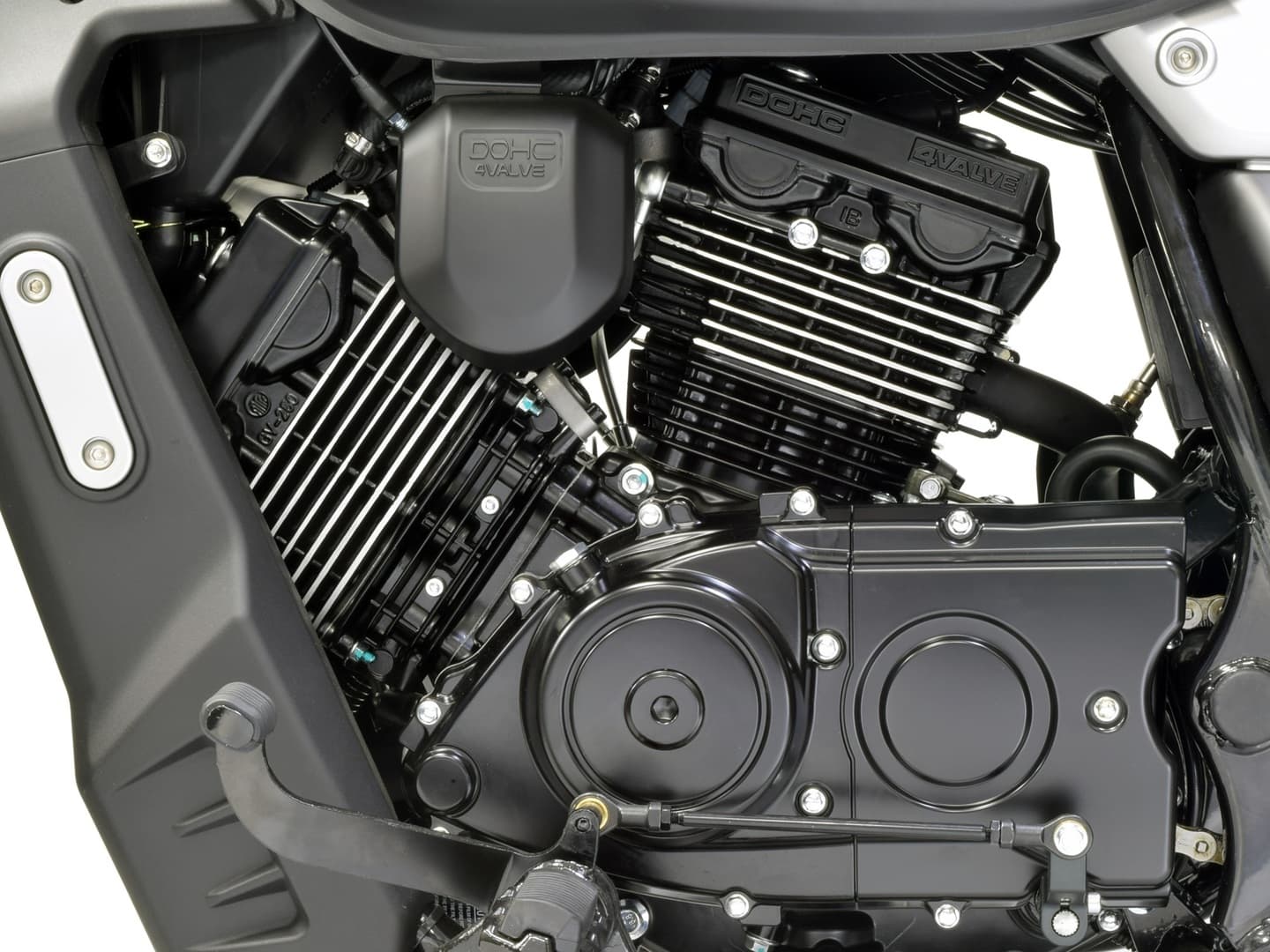

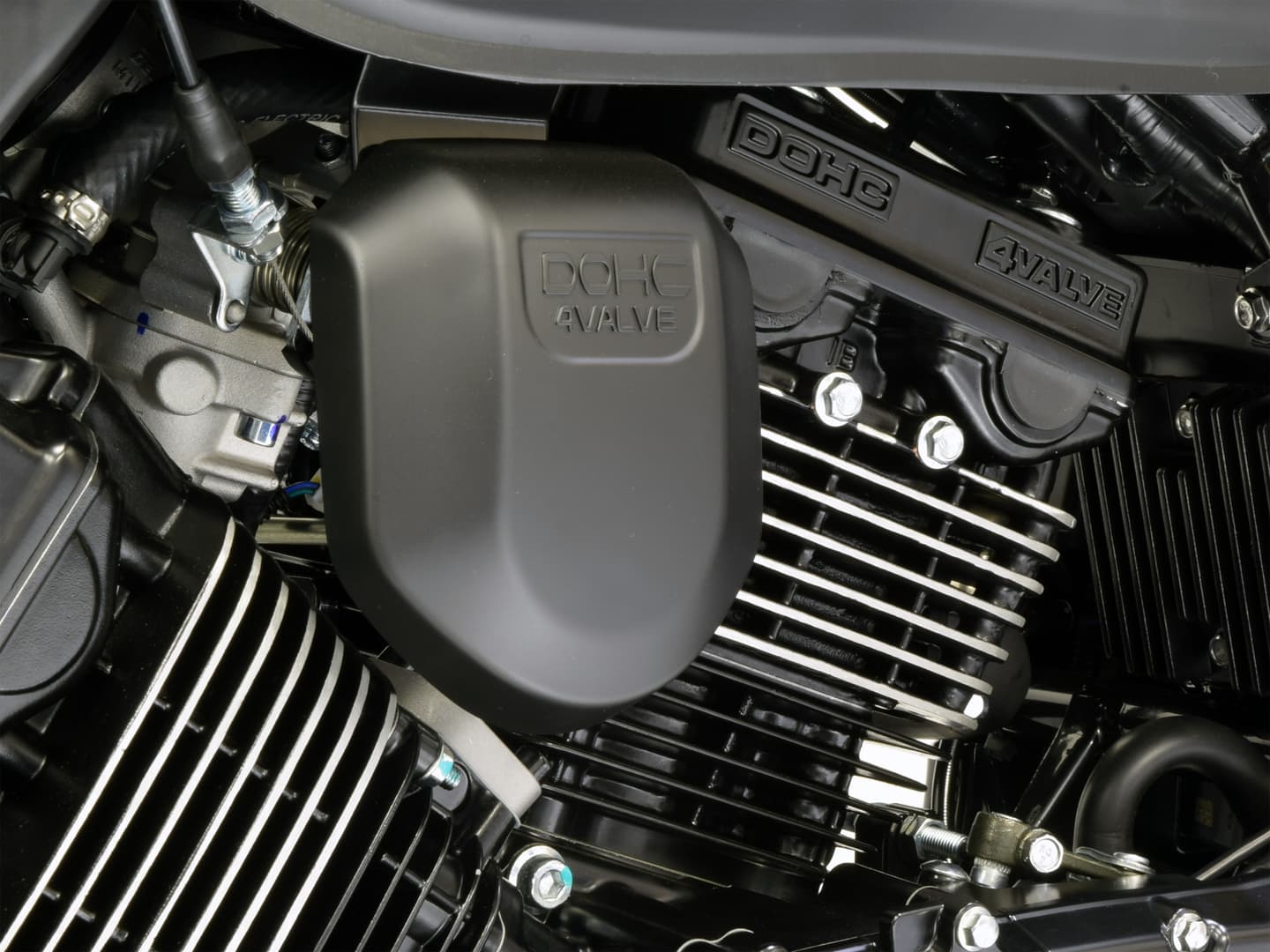

Engine Type: Air/Oil Cooled, 4-Stroke, 75° V-Twin, DOHC 8-Valve

Displacement: 249 cc (Bore 57mm x Stroke 48.8mm)

Maximum Power: 26.9 HP (19.8 kW) @ 9,000 RPM

Maximum Torque: 20.8 Nm @ 8,500 RPM

Compression Ratio: 10.3:1

Fuel System: Fuel Injection (EFI), Euro 5 Compliant

Transmission: 6-Speed Constant Mesh (Wet Multi-plate Clutch)

Final Drive: Chain (520 Type)

🛠️ Maintenance Note: As a new model, Join our forum community for maintenance tips for the new 6-speed gearbox and EFI system.

🛠️ Chassis, Brakes & Suspension Specifications

Frame Type: Double Cradle (New Design)

Front Suspension: 37mm Inverted Telescopic Forks (USD)

Rear Suspension: Swingarm with Twin Shocks

Braking System: Bosch Dual-Channel ABS (Single Channel in some markets)

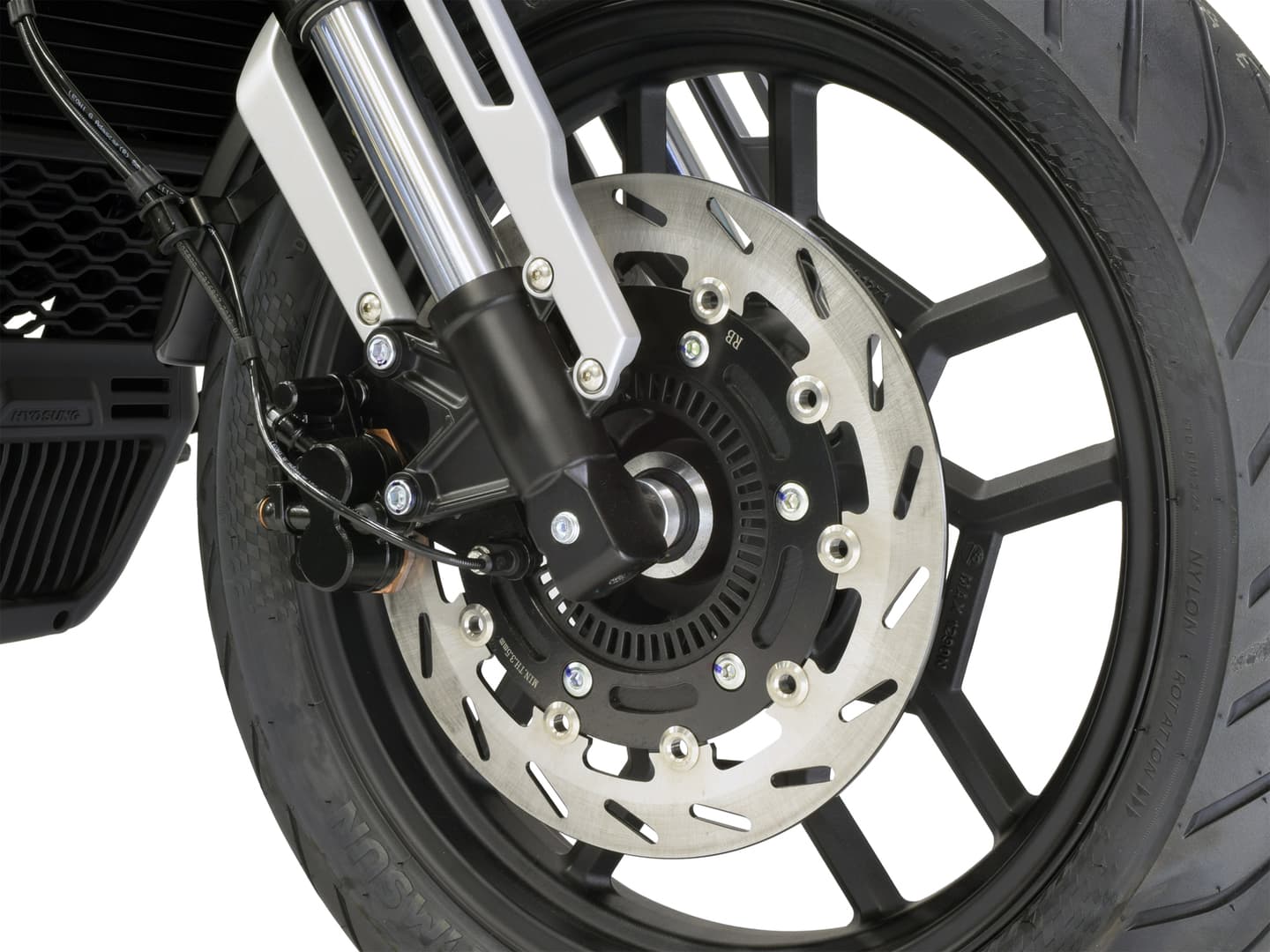

Front Brake: 300mm Single Disc, 2-Piston Caliper (ABS)

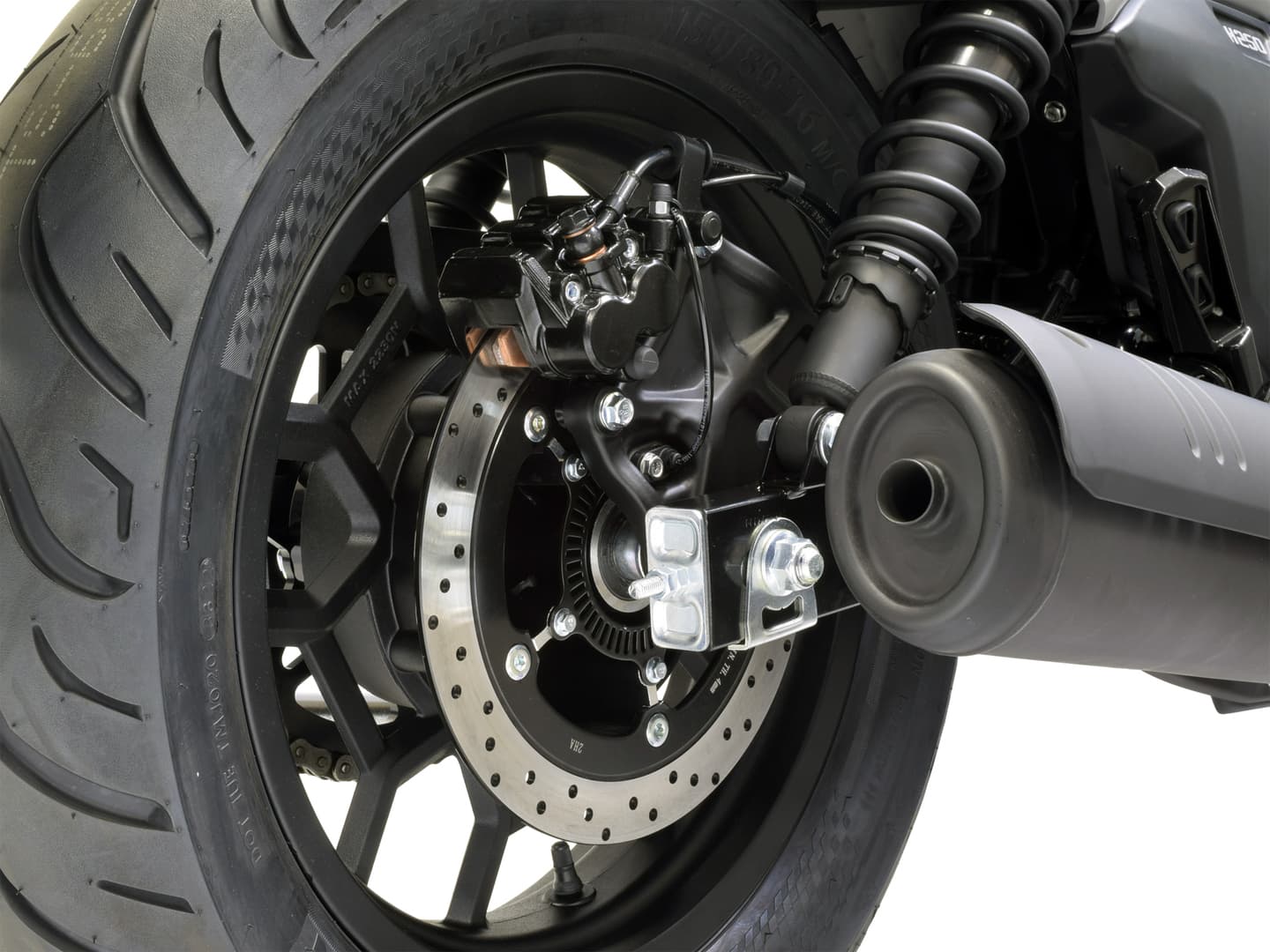

Rear Brake: 270mm Single Disc, 2-Piston Caliper (ABS)

Tyres: 120/80-17 (Front) | 150/80-16 (Rear)

📏 GV250DRA Dimensions & Weight Specifications

Curb Weight: 172 kg

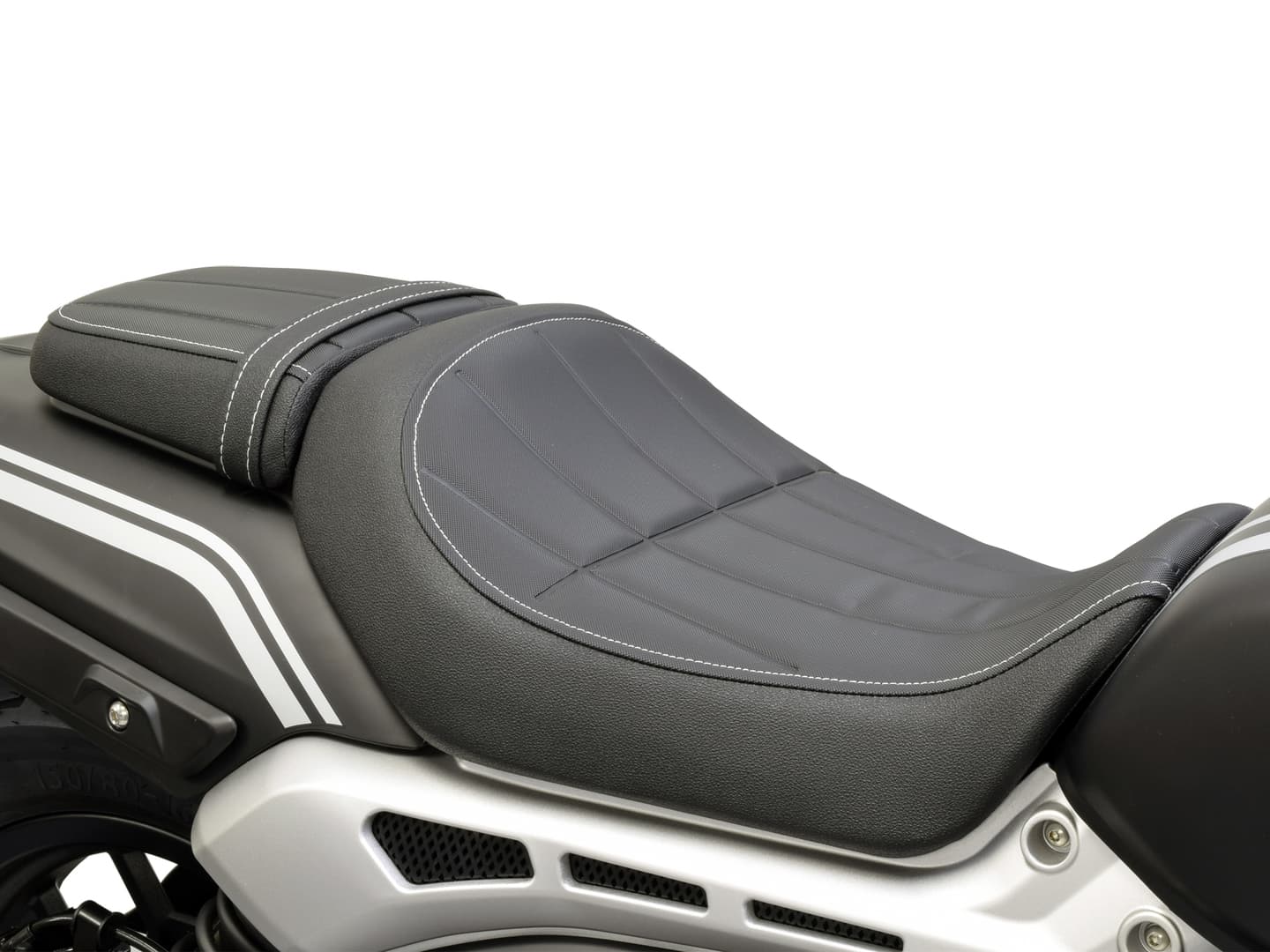

Seat Height: 750 mm

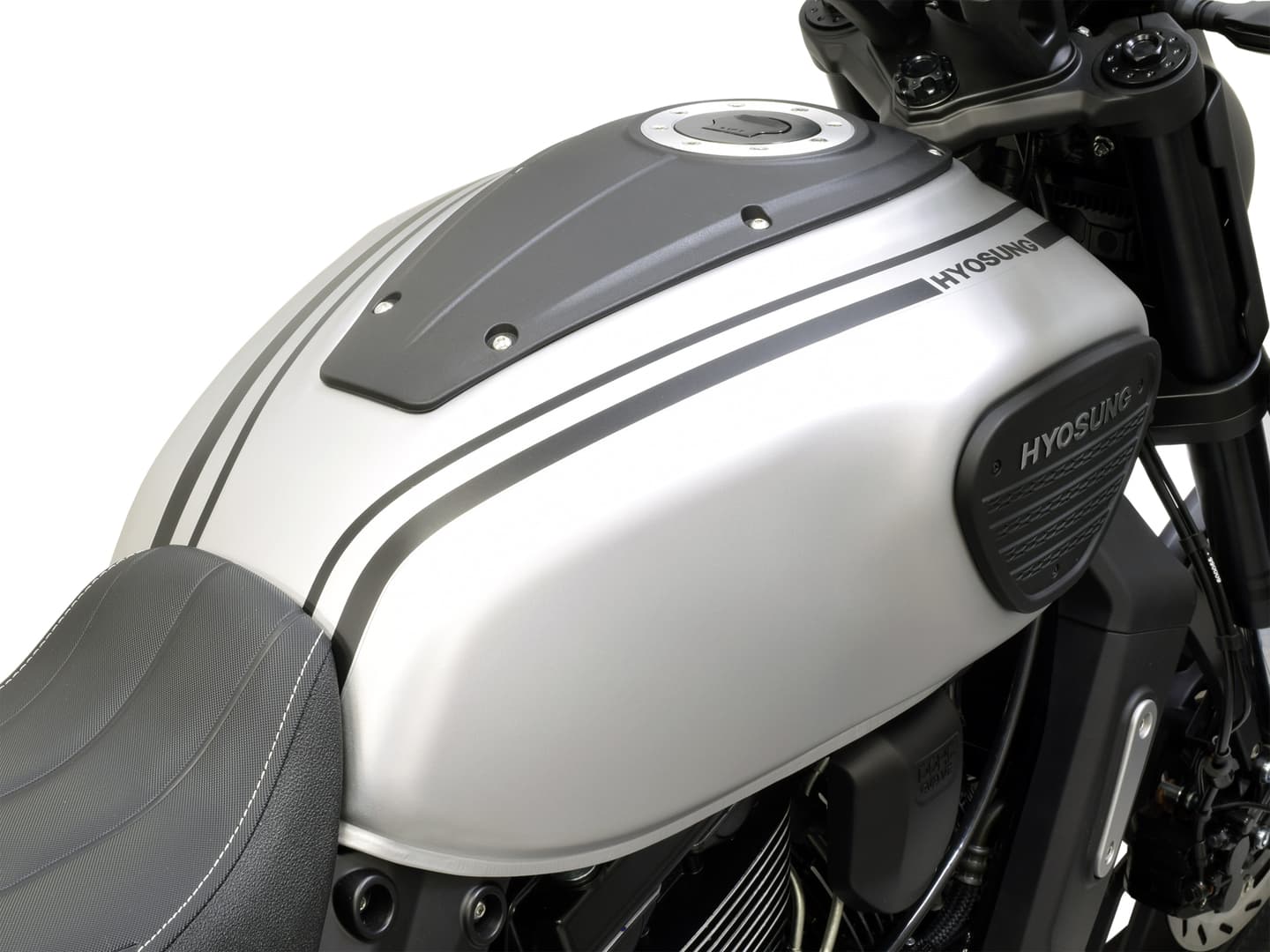

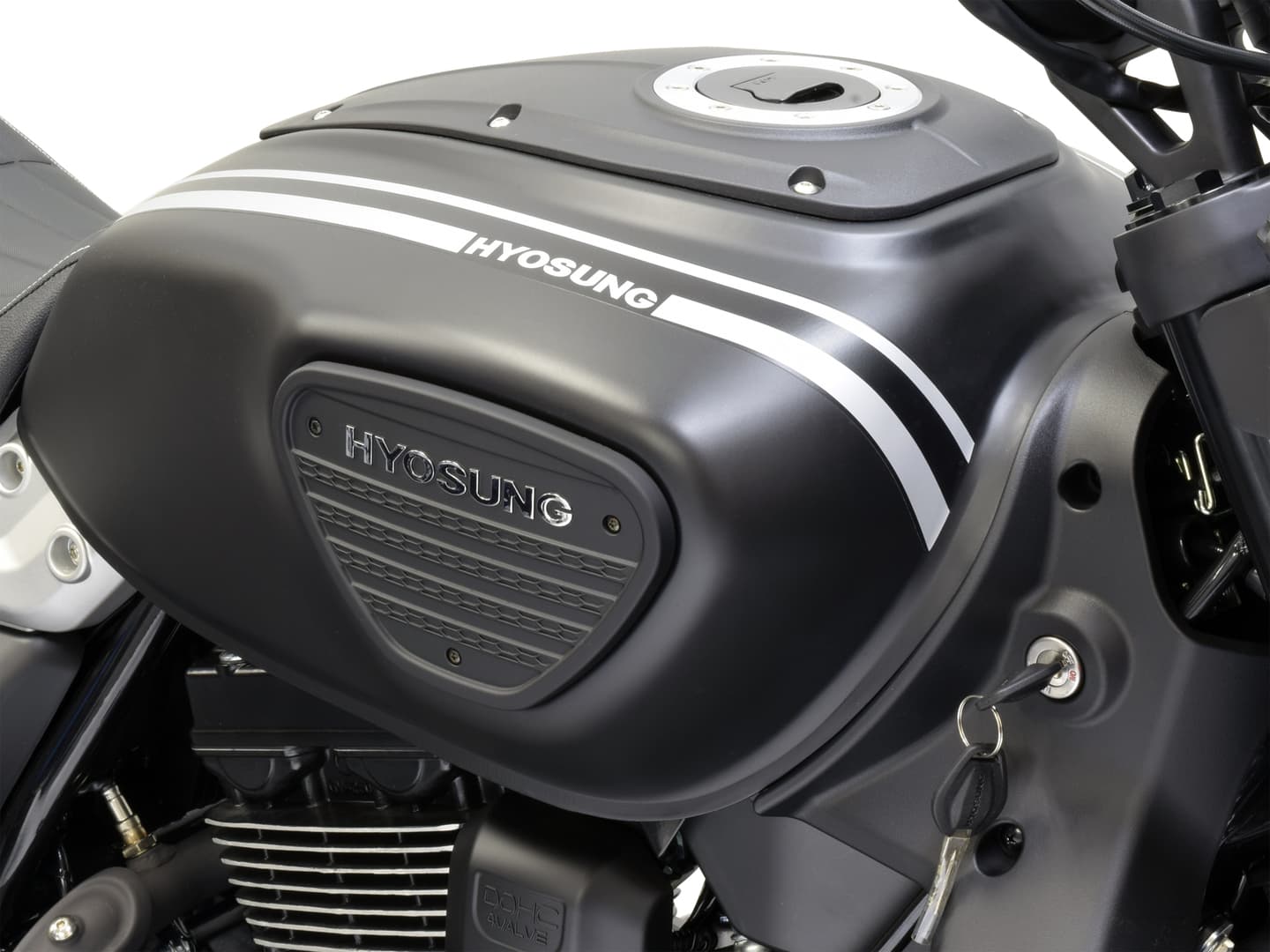

Fuel Capacity: 17.5 Litres / 18 Litres (Market dependent)

Wheelbase: 1,460 mm

Ground Clearance: 210 mm

Next Generation Features: What’s New?

The GV250DRA is a technological leap from the 2017 models. Key upgrades include:

6-Speed Transmission: A highly requested upgrade for comfortable highway cruising.

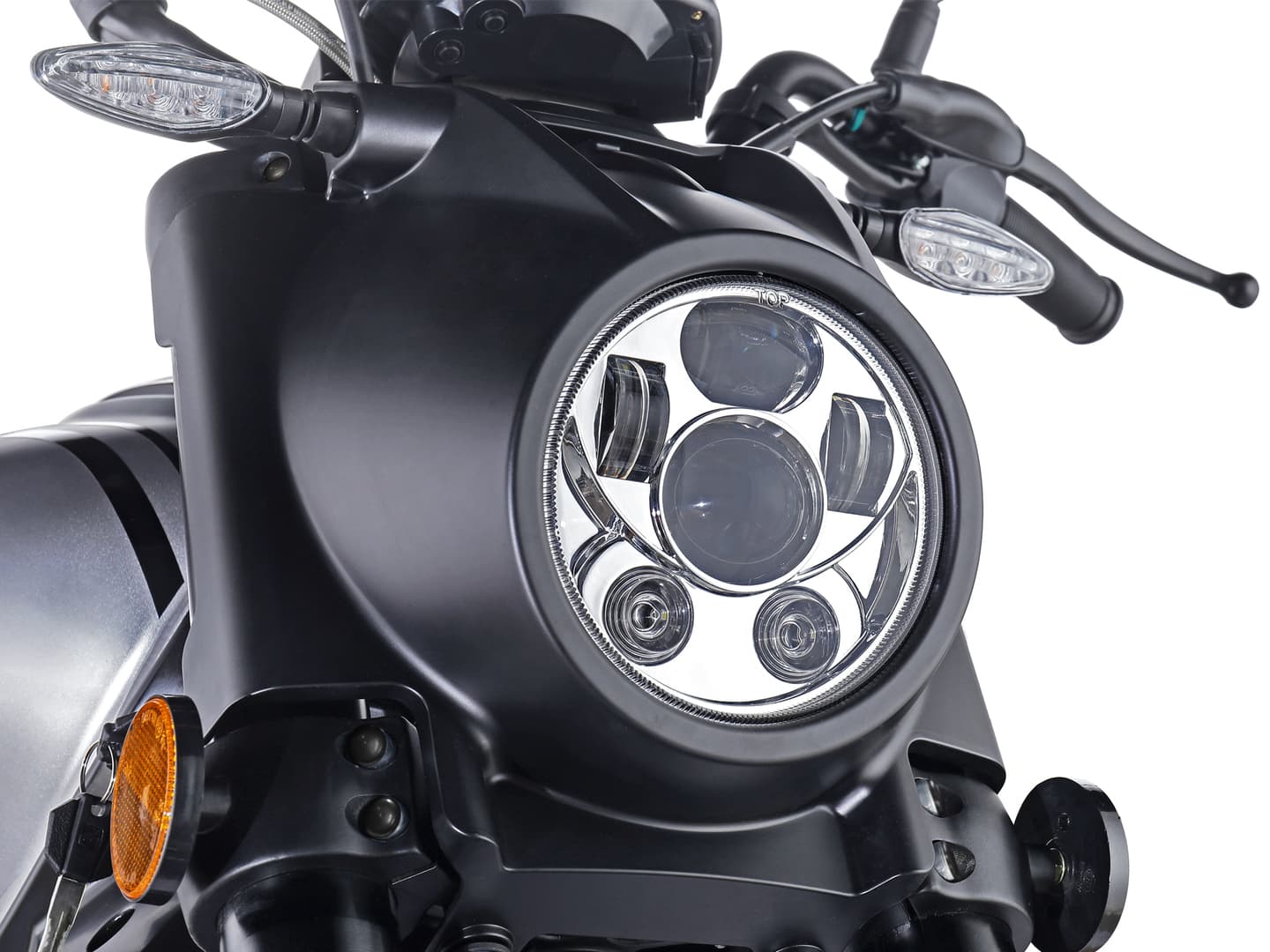

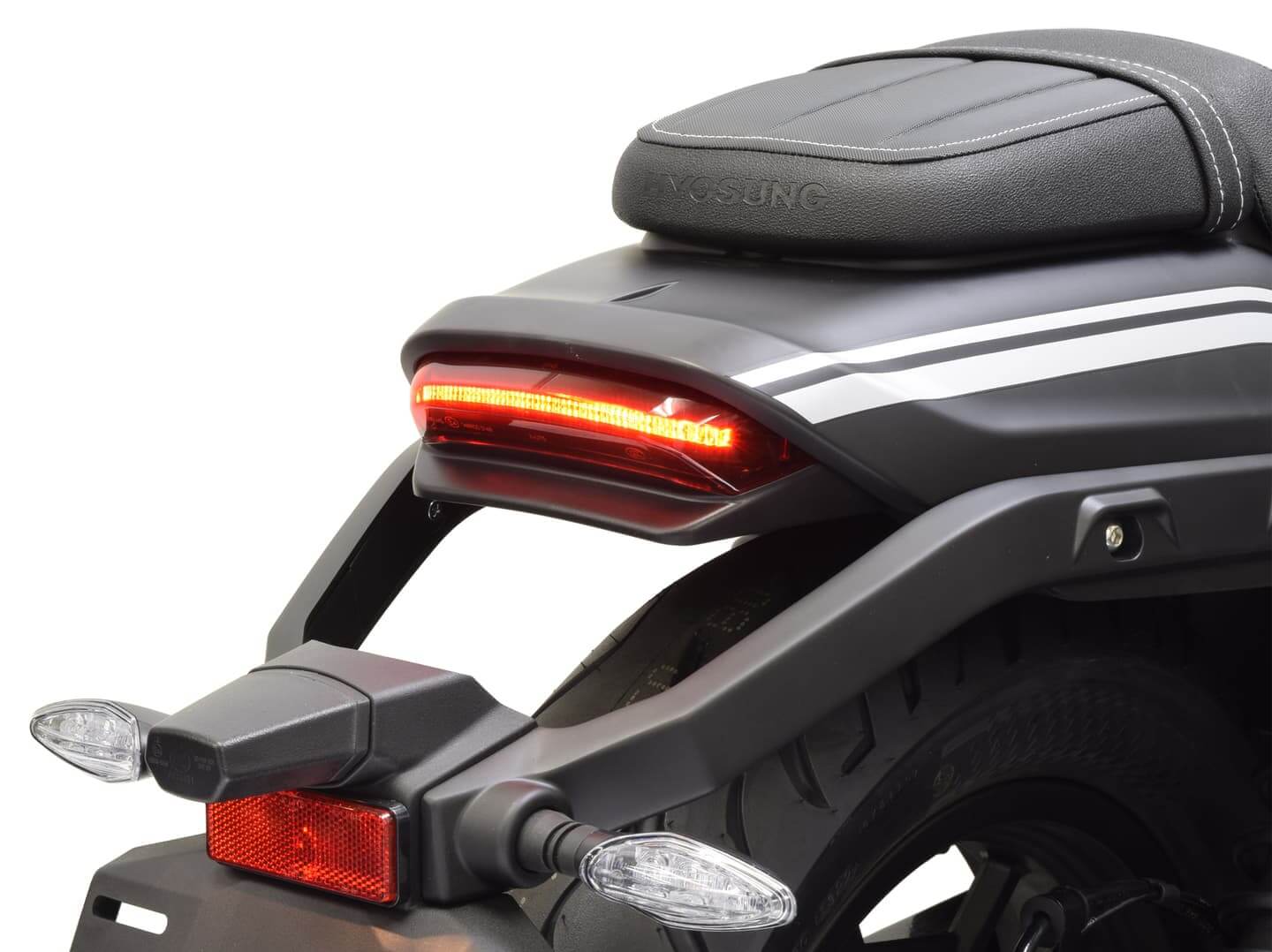

LED Lighting: Full LED treatment including a distinctive 6-bead fairing headlight and integrated LED indicators.

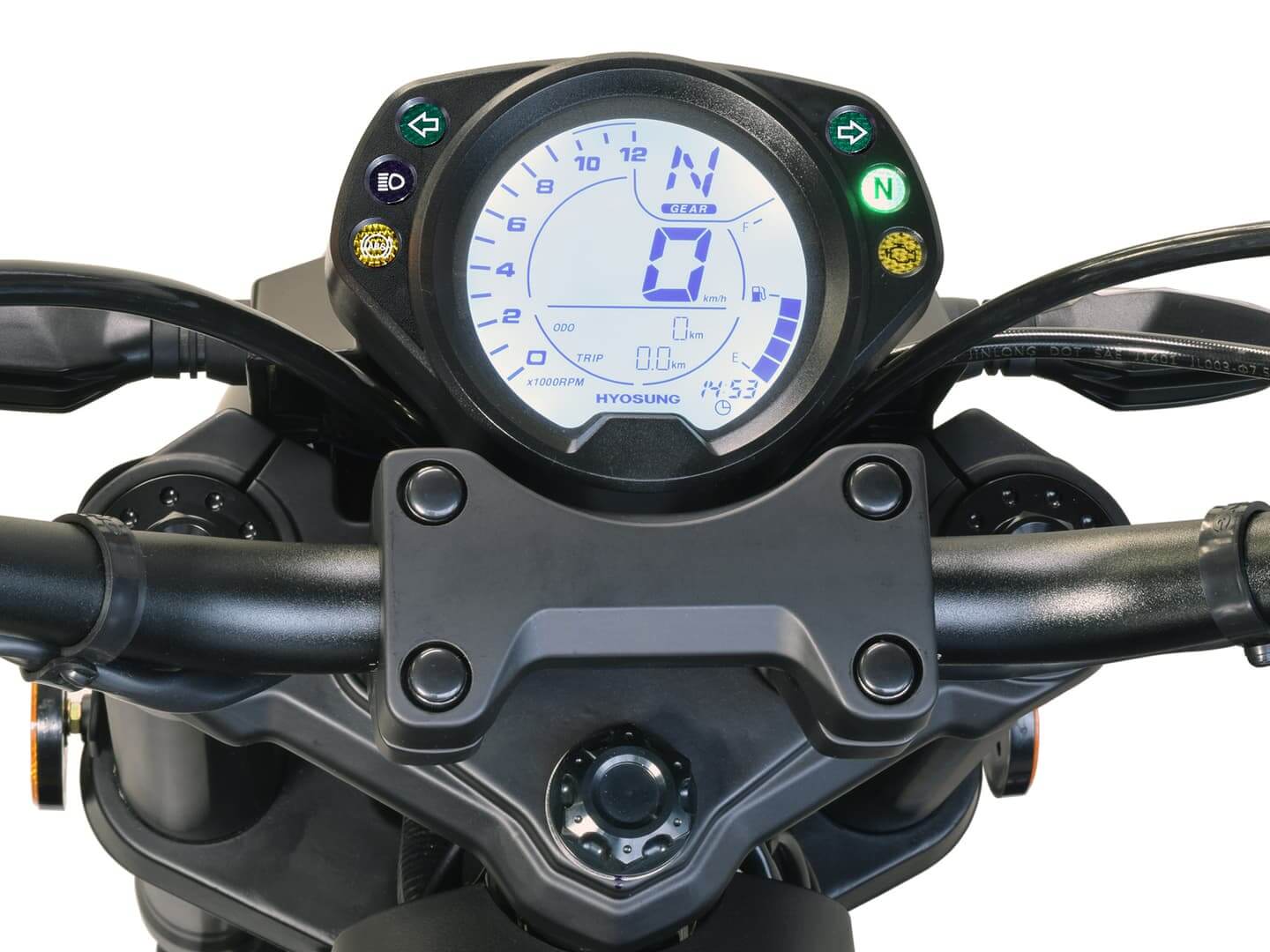

Modern Cockpit: A 4-stage adjustable LCD meter with a gear indicator and a factory-fitted USB power socket.
Suspension: Upgraded 37mm Inverted (USD) front forks replace the conventional telescopic units.
Braking: A move from the archaic rear drum brake to a modern 270mm rear disc with Bosch dual-channel ABS.
